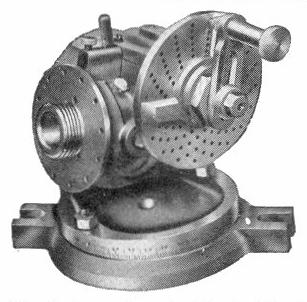

Ellis Dividing Head
 | ||||||
| These dividing/indexing heads work quite well in the home shop. I have used mine on both a 7" shaper and a knee mill with a 6x24" table. However, when found, they often have no documentation with them. The information posted here has been collected from a variety of sources. | ||||||
| PDF containing operating instructions | ||||||
| PDF containing an indexing chart | ||||||
| PDF containing an exploded view of the head and a parts list | ||||||
| PDF containing an exploded view of the external parts of the head | ||||||
| ||||||
| If you need plates for your dividing head, contact me by e-mail. I may have some available that will fit the Ellis, the L&W Chuck head, or a Bridgeport head. | ||||||
